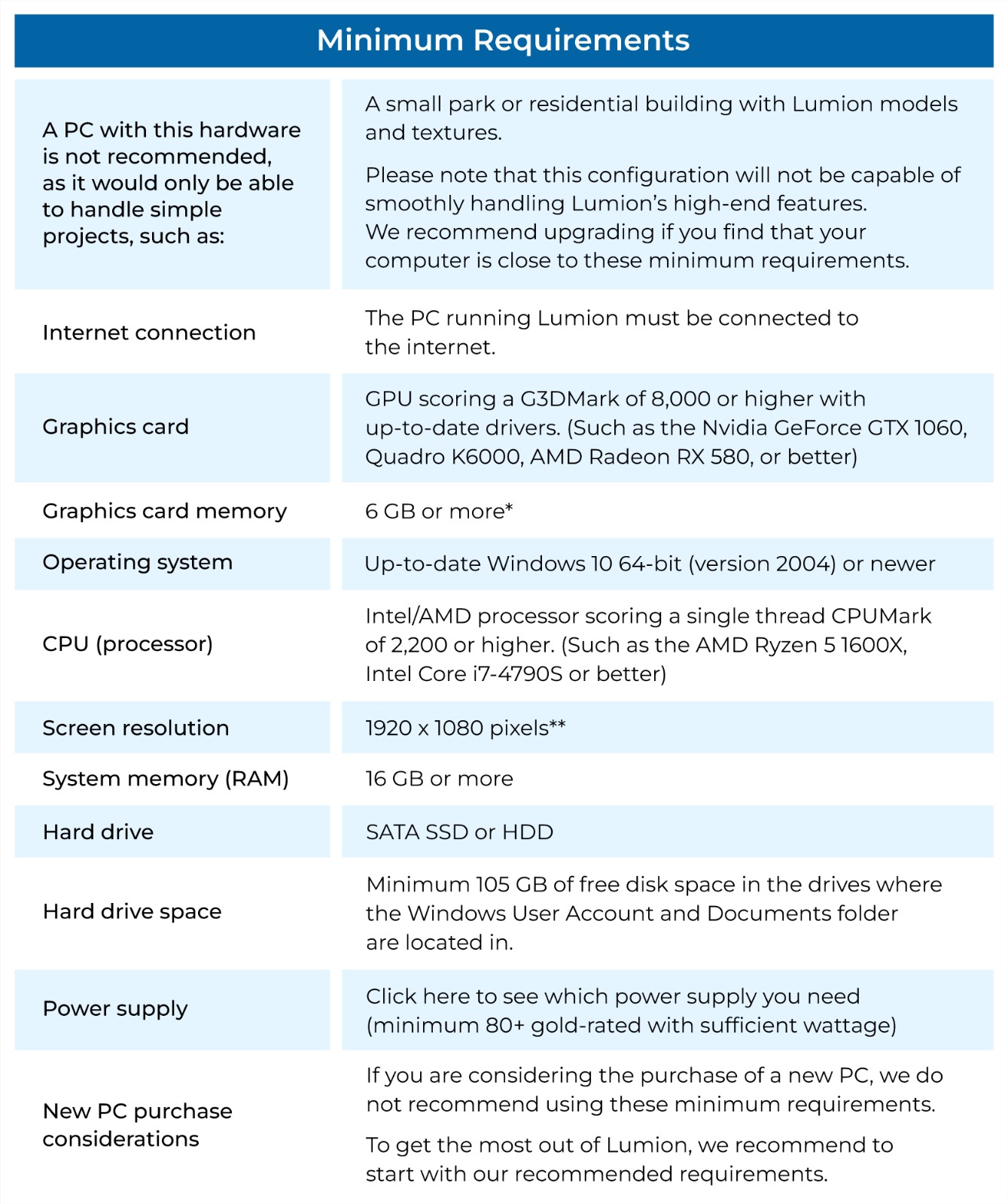

Minimum Requirements

A PC with minimum hardware requirements for Lumion is only suitable for handling simple projects, such as a small park or a residential building with basic Lumion models and textures. However, this configuration is not recommended for optimal performance, as it will struggle with Lumion’s high-end features. Upgrading your system is advisable if your current setup is close to these minimum specifications.

To run Lumion, an internet connection is required for the PC. The graphics card should score at least 8,000 on G3DMark and have up-to-date drivers. Examples of suitable GPUs include the Nvidia GeForce GTX 1060, Quadro K6000, or AMD Radeon RX 580. Additionally, the graphics card should have a minimum of 6 GB of dedicated memory.

The operating system must be an up-to-date version of Windows 10 (64-bit), version 2004 or newer. For the CPU, an Intel or AMD processor scoring a single-thread CPUMark of 2,200 or higher is required, such as the AMD Ryzen 5 1600X or Intel Core i7-4790S. The screen resolution should be at least 1920 x 1080 pixels.

In terms of memory, 16 GB of RAM or more is necessary. For storage, the system should include a SATA SSD or HDD with a minimum of 105 GB of free disk space, specifically in the drives where the Windows User Account and Documents folder are located. A reliable power supply is also essential, ideally a minimum 80+ gold-rated unit with sufficient wattage.

When purchasing a new PC, it’s recommended to aim for higher specifications than these minimum requirements to fully utilize Lumion’s features and ensure smooth performance. Starting with the recommended requirements will provide a better experience and greater capability for handling complex projects.

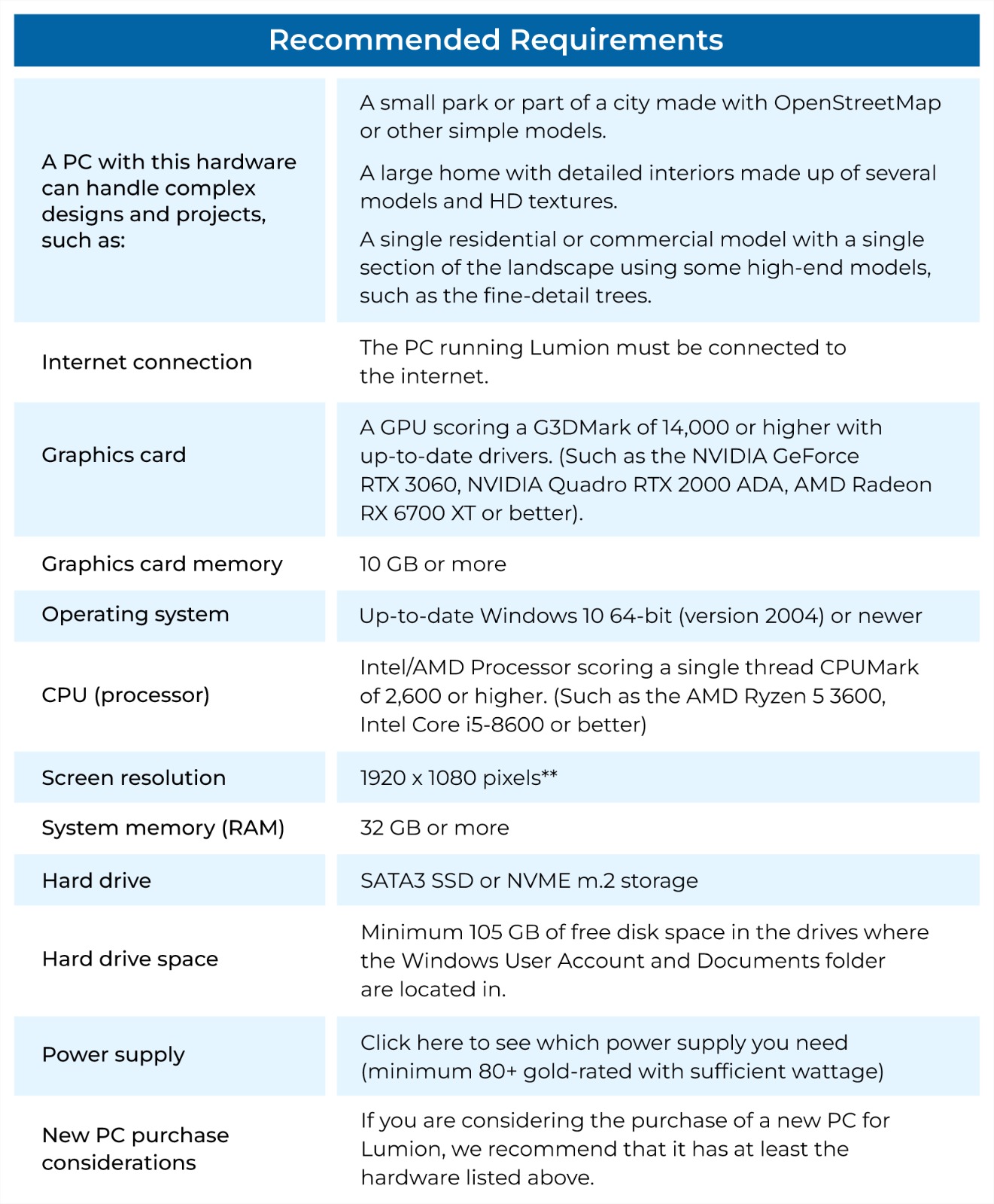

Recommended Requirements

A PC with this hardware can efficiently handle complex designs and projects in Lumion. It is suitable for tasks such as creating a small park or a section of a city using OpenStreetMap or other simple models, designing a large home with detailed interiors comprising several models and HD textures, or working on a single residential or commercial model with a landscape section that includes high-end elements like fine-detail trees.

For smooth performance, the PC must be connected to the internet. The graphics card should score a G3DMark of 14,000 or higher and have up-to-date drivers. Suitable GPUs include the NVIDIA GeForce RTX 3060, NVIDIA Quadro RTX 2000 ADA, or AMD Radeon RX 6700 XT. The GPU should have at least 10 GB of dedicated memory for optimal rendering.

The operating system should be an up-to-date version of Windows 10 (64-bit), version 2004 or newer. For processing power, the CPU should score a single-thread CPUMark of 2,600 or higher, such as the AMD Ryzen 5 3600 or Intel Core i5-8600. The screen resolution should be a minimum of 1920 x 1080 pixels for clear visuals.

The system should include 32 GB or more of RAM to handle large models and high-resolution textures. Storage should consist of a SATA3 SSD or NVME m.2 drive with at least 105 GB of free disk space in the drives where the Windows User Account and Documents folder are located. A reliable power supply, such as a minimum 80+ gold-rated unit with sufficient wattage, is essential to ensure stable performance.

If purchasing a new PC for Lumion, it is recommended to have at least the hardware listed above. This configuration offers a robust foundation for handling detailed and complex projects with efficiency and reliability.

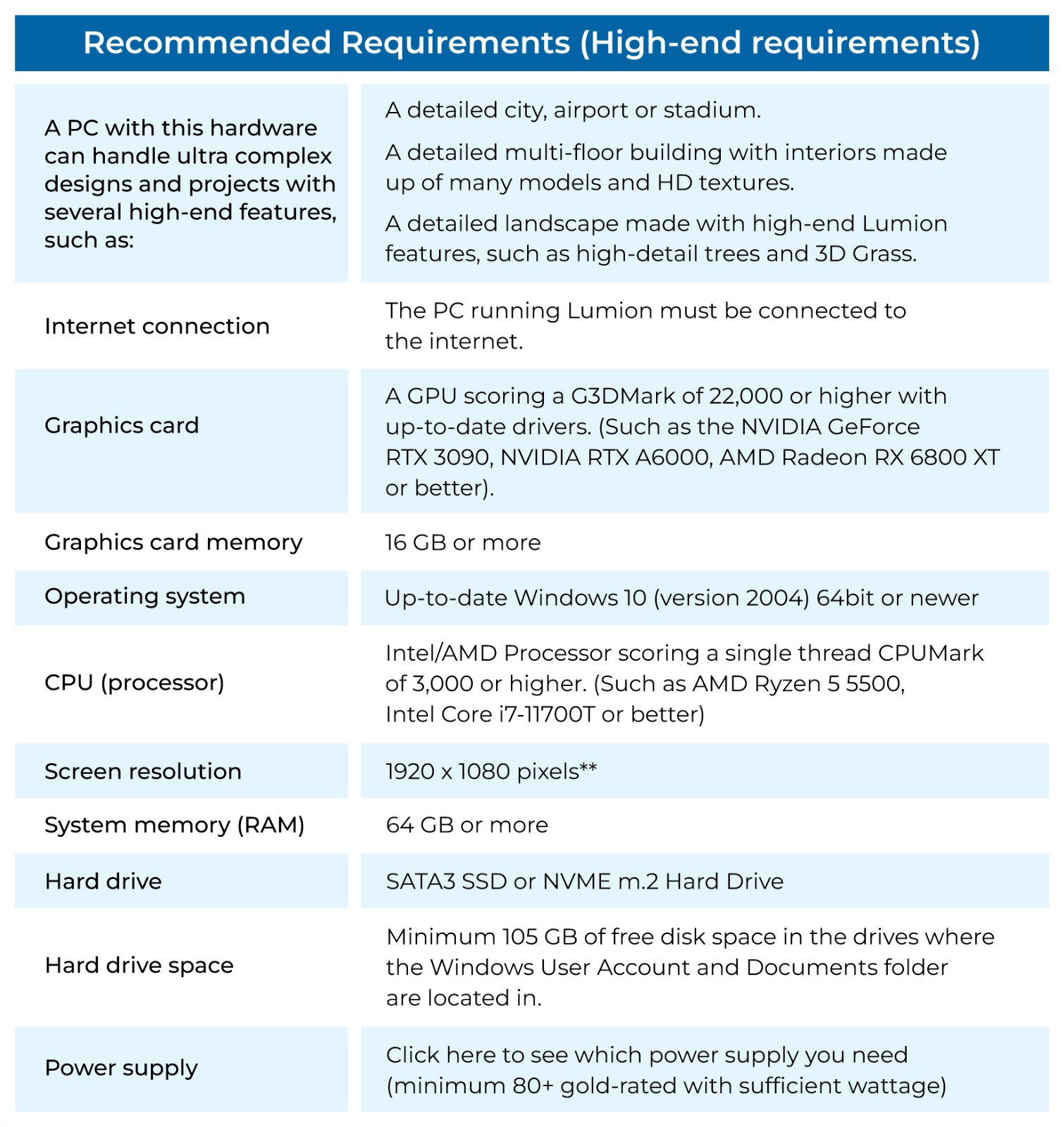

High-end requirements

For high-end requirements, a PC with this hardware can efficiently handle ultra-complex designs and projects that utilize several advanced features. It is capable of managing highly detailed cityscapes, airports, or stadiums, along with intricate multi-floor buildings featuring extensive interiors made up of numerous models and high-definition textures. Additionally, it excels at rendering detailed landscapes created with high-end Lumion features, such as fine-detail trees and 3D Grass, ensuring smooth and realistic visualization.

The PC must be connected to the internet to run Lumion effectively. It should be equipped with a GPU scoring a G3DMark of 22,000 or higher, such as the NVIDIA GeForce RTX 3090, NVIDIA RTX A6000, or AMD Radeon RX 6800 XT, with 16 GB or more of dedicated video memory. The operating system should be an up-to-date Windows 10 64-bit version (2004 or newer). The CPU must score a single-thread CPUMark of 3,000 or higher, such as an AMD Ryzen 5 5500 or Intel Core i7-11700T.

The screen resolution should be a minimum of 1920 x 1080 pixels, and the system memory should have 64 GB or more of RAM for optimal performance. Storage requirements include a SATA3 SSD or NVMe m.2 drive with a minimum of 105 GB of free disk space in the drives where the Windows User Account and Documents folder are located. Finally, the power supply should be 80+ gold-rated with sufficient wattage to support the hardware configuration.

Visit: www.proxpc.com

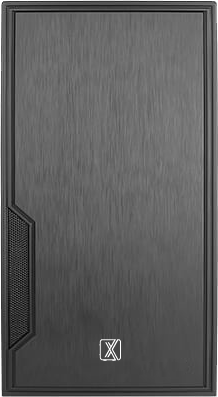

Recommended Workstations for Lumion
