Introduction

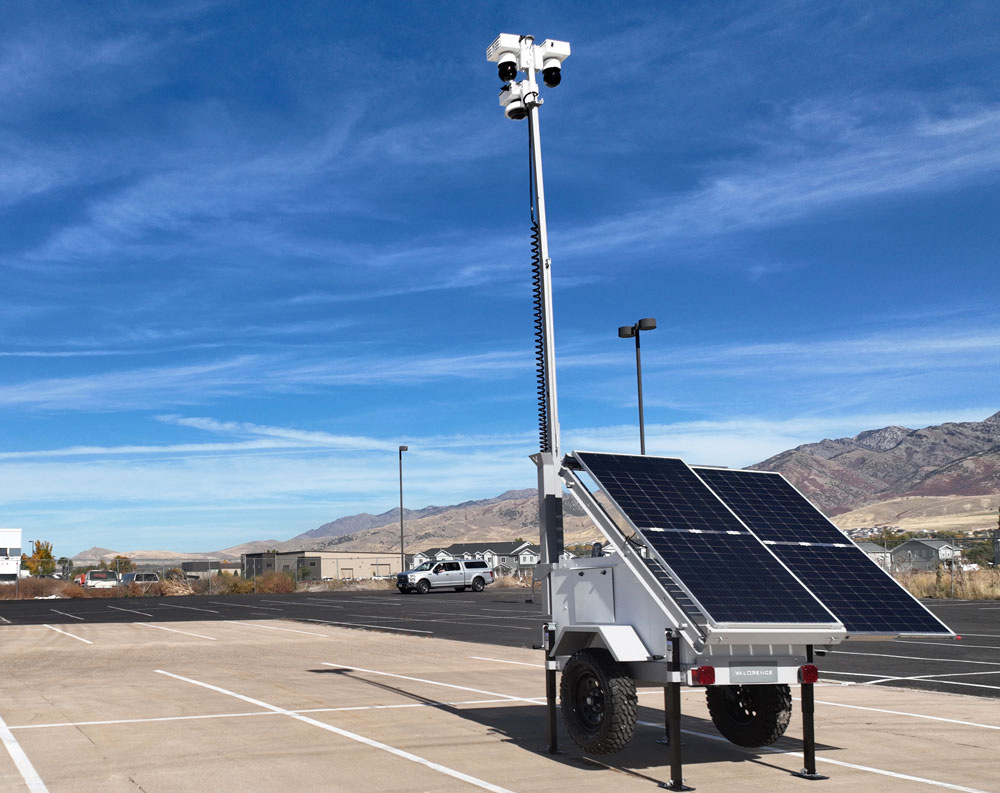

The ProX AI Surveillance System, model SPSS-8C-AI, is a cutting-edge, solar-based security solution designed for a range of challenging environments. Released in July 2024 by ProX PC, this system is crafted to meet the demands of modern security needs with robust features and reliable performance. In this blog, we will explore the various components of this surveillance system, its benefits, and its diverse applications.
Key Features
1. Surveillance Cameras
The ProX AI Surveillance System is equipped with high-performance fixed cameras designed for clear and comprehensive monitoring.
- Resolution and Lens: The cameras offer a resolution of 2560x1440, ensuring crisp and detailed images. They come with a fixed 4mm lens, an aperture of F1.6, and a wavelength of 850nm.
- Adjustments and Vision: The cameras feature angle adjustments with a bracket for pan (0-360 degrees) and tilt (0-75 degrees). They are equipped with dual IR cut filters for night vision and smart defog for improved visibility in adverse weather conditions.
- Video and Audio: They support video compression formats IH+265, H.265, and H.264, with bit rates ranging from 32Kbps to 6Mbps. For audio, the cameras use G.711/G.711U/ADPCM compression with bit rates from 8K to 48Kbps.
- Additional Features: The cameras include privacy masking in four regions and support for various network protocols such as TCP/IP, HTTP, FTP, and more. They are protected with IP67 rating, lightning protection, and surge protection.
2. Network Video Recorder (NVR)
The NVR is a vital component of the ProX AI Surveillance System, handling video recording and playback.
- Video Input and Output: It supports 10-channel video inputs with a maximum resolution of 8MP. The NVR offers various screen split options and outputs audio through a single RCA connection.
- Decoding and Recording: The device can decode video formats including IH+265, H.265, and H.264. Recording resolutions range from 3MP to 4CIF, with preview capabilities for different resolutions.
- Storage and Connectivity: The NVR includes 2 TB of SATA storage, expandable up to 10TB. It features a network interface for connectivity and supports multiple protocols such as TCP/IP, HTTP, and more.
3. Power Supply
- For PoE Switch and NVR: A DIN rail-type DC-DC converter provides power with an input voltage range of 16.8-33.6V DC and an output of 24V DC. It has a power rating of 480W and an efficiency of up to 93%.
- For Edge Device: An isolated SMPS offers power with an input range of 90-264V AC and an output of 12V DC, delivering 120W with an efficiency of up to 90%.
4. Solar Panels and Battery
- Solar Panels: The system uses monocrystalline solar panels connected in series to provide 24V DC output. Each panel has a maximum power output of 265 Wp, combining for a total of 530 Wp.
- Battery: The battery setup includes two batteries connected in series, offering 24V DC output. It provides 16-24 hours of backup time with a charging cycle ranging from 1000 to 10000 recharges.
5. Computing Device
The ProX MicroEdge Orin Nano 8GB is at the heart of the system, equipped with powerful computing capabilities.
- Specifications: It features a 1024-core Nvidia Ampere architecture GPU, a 6-core Arm Cortex-A78AE CPU, and 8GB of LPDDR5 memory. It supports various video encoding and decoding options, and its power consumption is optimized to 60W max.
6. Networking
- Industrial Switch: The switch includes 8 Ethernet ports, 2 SFP ports, and supports PoE with a maximum power of 240W. It features a bandwidth of 20 Gbps and operates in temperatures from -40 to 75°C.
Benefits
The ProX AI Surveillance System offers numerous advantages:
- Remote and Mobile Deployments: Ideal for locations where traditional power sources are unavailable.
- AI Video Surveillance: Enhanced with AI capabilities for smarter monitoring and analysis.
- Ruggedization: Built to withstand harsh environments and extreme conditions.
- Secure Encrypted Data: Ensures that your data remains safe with advanced encryption.
- Data Loss Prevention: Features RAID for added protection against data loss.
- Cost Saving: Solar power reduces reliance on traditional electricity, cutting operational costs.
- Self Sufficiency: Operates independently with solar power, reducing maintenance needs.
- 24/7 Unattended Operation: Capable of continuous operation without human intervention.
- Customized Security Solutions: Flexible configurations to meet specific security needs.
Installation and Enclosure
1. Enclosure
- Type: Weather-proof metal enclosure designed to protect the system from outdoor elements.
- Ventilation: Equipped with ventilation and fans to maintain optimal operating temperatures.
- Mounting: NEMA mounting for secure installation in various environments.
2. Mounting and Installation
- Type: Pole-mounted for flexibility in placement and relocation.
- Ease of Installation: Basic tools required, with an estimated installation time of 2-4 hours by a two-person team.
3. Maintenance
- Access: Components are easily accessible for servicing.
- Schedule: Regular maintenance every 3-6 months is recommended.
- Cleaning: Wipe down the enclosure and solar panels regularly to keep them free from dust and debris.
4. Environmental Conditions
Operating Temperature: Suitable for a wide range of outdoor temperatures from -30°C to 60°C.
Weather Resistance: Designed to endure rain, snow, dust, and other harsh conditions.
Example Applications
The ProX AI Surveillance System is versatile and can be deployed in various scenarios:
- Oil, Gas & Utility Security: Protect critical infrastructure in remote locations.
- Asset Protection on Remote Sites: Secure valuable assets in isolated areas.
- Construction/Demolition: Monitor construction sites and ensure safety.
- Roads & Highway Monitoring: Oversee traffic and road conditions.
- Law Enforcement Surveillance: Assist in law enforcement with advanced monitoring capabilities.
- Public Space Monitoring: Enhance safety and security in public areas.
Conclusion
The ProX AI Surveillance System SPSS-8C-AI is a state-of-the-art solution combining solar power, advanced AI technology, and robust design. It provides reliable surveillance in challenging environments, ensuring continuous protection and data security. With its versatile applications and numerous benefits, this system is a valuable asset for modern security needs. For more information, visit the ProX PC website or contact their sales team.
